Etching equipment｜Soft etch small diameter hole cleaning equipment
Small diameter hole washing that is certain at distinguished surface accuracy
Small diameter hole washing that is certain at distinguished surface accuracy
Small diameter hole washing by slit of high straightness
Implementation of the drying in hole inside by high-precision air knife
Available for work of board thickness 0.5μm transport
Use
Degreasing of copper surface
Oxidation film removal of copper surface
Small diameter hole cleaning
Specifications example
| Equipment dimension (L×W×H) | ： | 15362 × 3000 × 1400 mm |
| Board size (effective width) | ： | 600mm |
| Process liquid | ： | Sulfuric acid/Hydrogen peroxide |
| Transportation rate | ： | 0.06～6m/min | Pass line | ： | Operation system | ： |

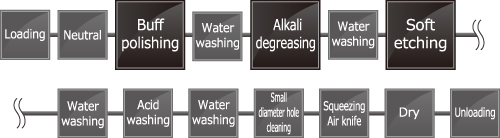

Line configuration example
*Equipment materials vary according to chemicals
*Please feel free to contact us for other special specifications
