Al etching → Amine stripping equipment
Fine pitch is possible by high-precision etching system
It supports an extra-large board
Use
Etching of aluminums film on the glass board and stripping of photoresist with amine-based stripping liquid
Specifications example
| Equipment dimension (L×W×H) | ： | 12356 × 2200 × 1500mm |
| Board size (effective width) | ： | 420mm |
| Process liquid | ： | Etching: phosphoric acid ? nitric acid ? acetic acid Stripping: amine |
| Transportation rate | ： | 0.5～5m/min | Pass line | ： | Operation system | ： |

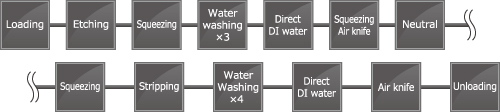

Line configuration example
*Equipment materials vary according to chemicals
*Please feel free to contact us for other special specifications
