Small diameter hole washing that is certain at distinguished surface accuracy
Small diameter hole washing by slit of high straightness
Implementation of the drying in hole inside by high-precision air knife Available for work of board thickness 0.5μm transport
Degreasing of copper surface
Oxidation film removal of copper surface
Small diameter hole cleaning

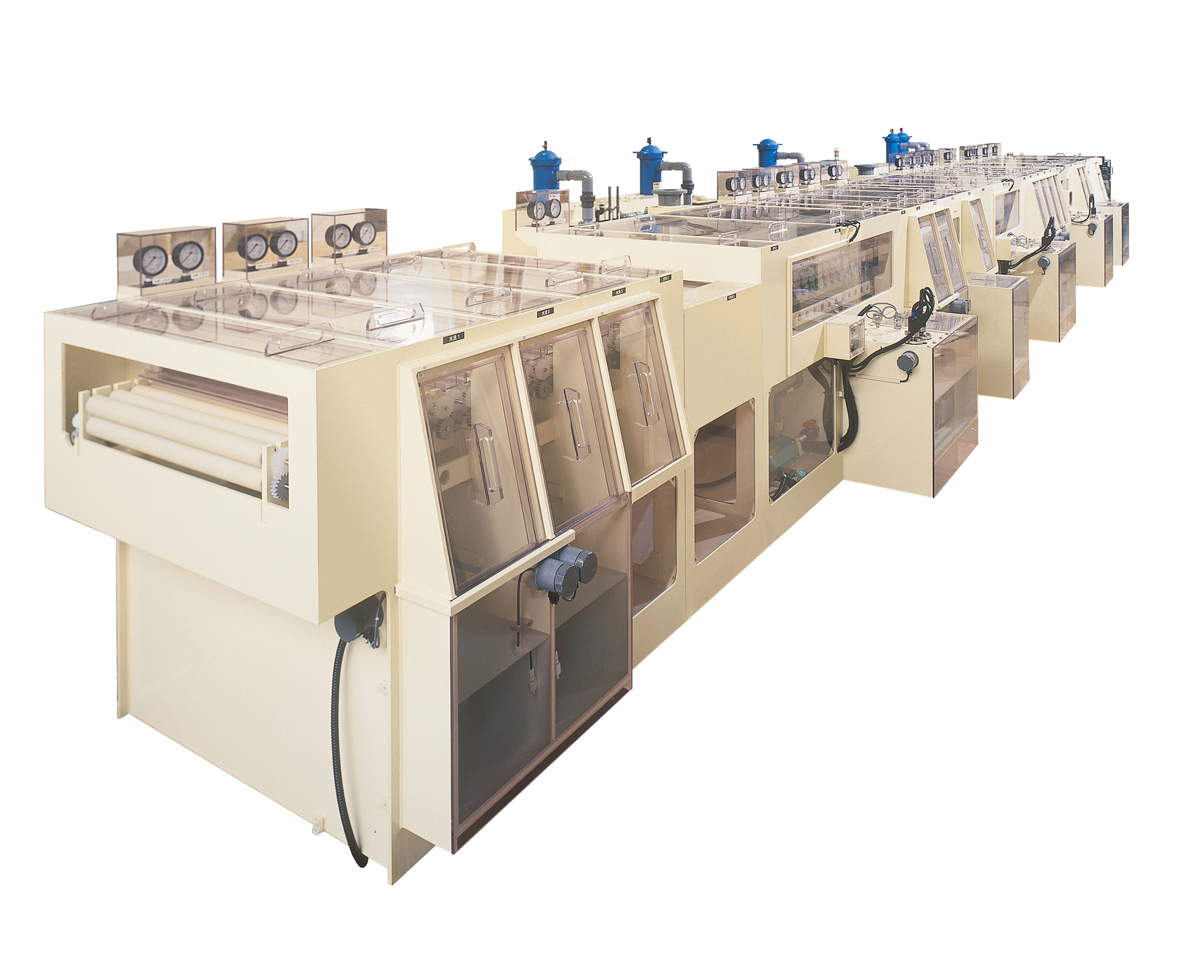

Equipment dimension (L×W×H) ： 15362 × 3000 × 1400 mm
Board size (effective width) ： 600mm
Process liquid ： Sulfuric acid/Hydrogen peroxide
Transportation rate ： 0.06～6m/min
Pass line ：
Operation system ：
*Equipment materials vary according to chemicals
*Please feel free to contact us for other special specifications
