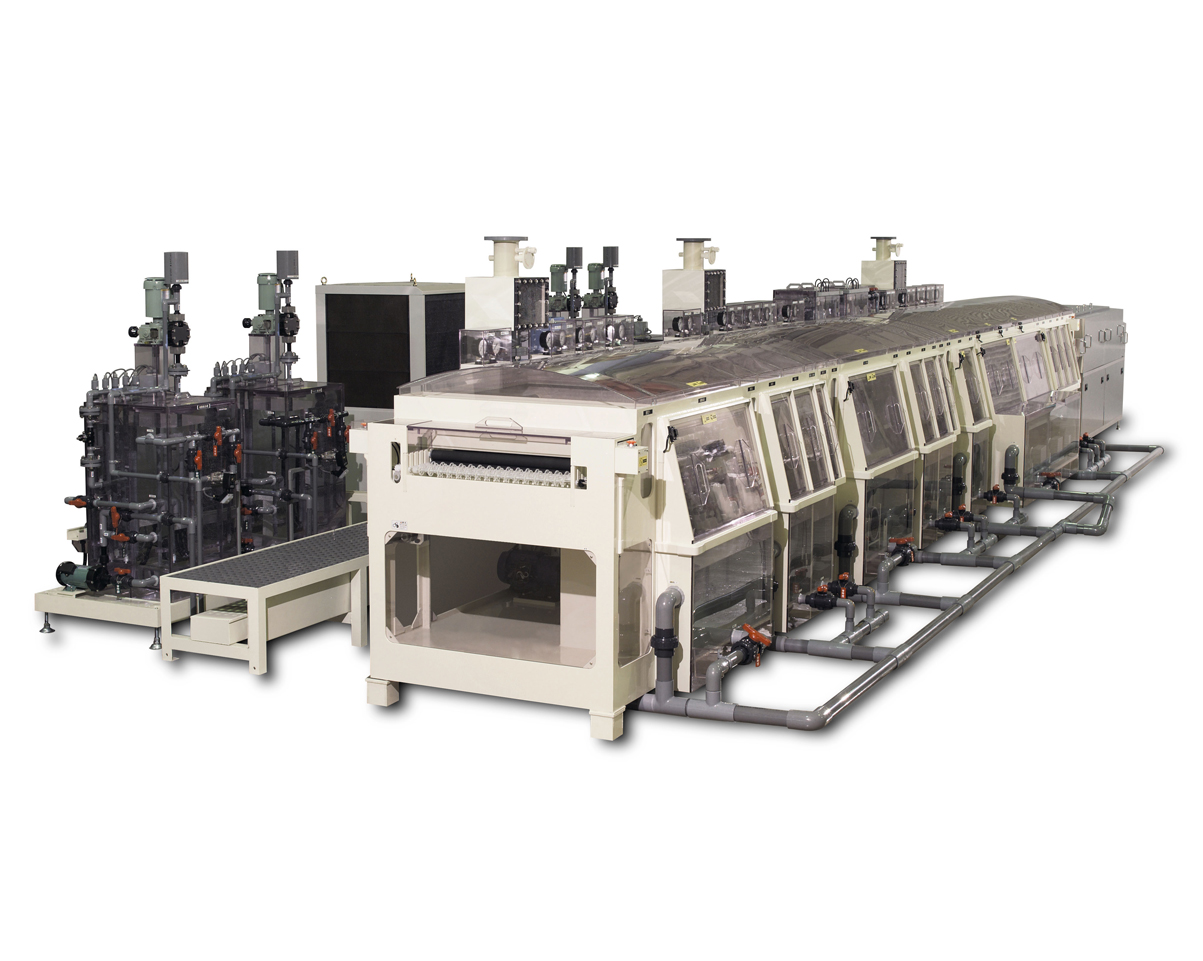

Surface treatment equipment｜Black oxide alternative horizontal processing equipment

Surface treatment equipment｜Black oxide alternative horizontal processing equipment

It is stable and can transport work of board thickness 50μm

The realization of uniform surface treatment by high surface accuracy
Available for FPC transport

Use

Preprocessing for laminating
To improve a bond strength at the time of the laminating by forming the organic film on the cupper surface

Specifications example

Equipment dimension (L×W×H)    ：    9811 × 4360 × 1400 mm
Board size (effective width)    ：    610mm
Process liquid    ：    various chemicals maker correspondence
Transportation rate    ：    0.06～2.4m/min
Pass line    ：
Operation system    ：

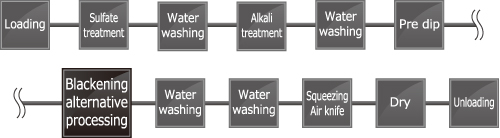

Line configuration example

Surface treatment equipment｜Black oxide alternative horizontal processing equipment Line configuration example


*Equipment materials vary according to chemicals
*Please feel free to contact us for other special specifications
