Single panel transport is possible without jigs with FPC of 0.03t
There is not the damage caused by the transportation roller with an ultrathin board either There are not a wrinkle and breaking of the work by squeezing method for thin board
The small work processing of 2 inches square is possible
It is for space-saving research
It is most suitable for materials development and a test
The developing, etching, stripping of PCB, LCD are possible

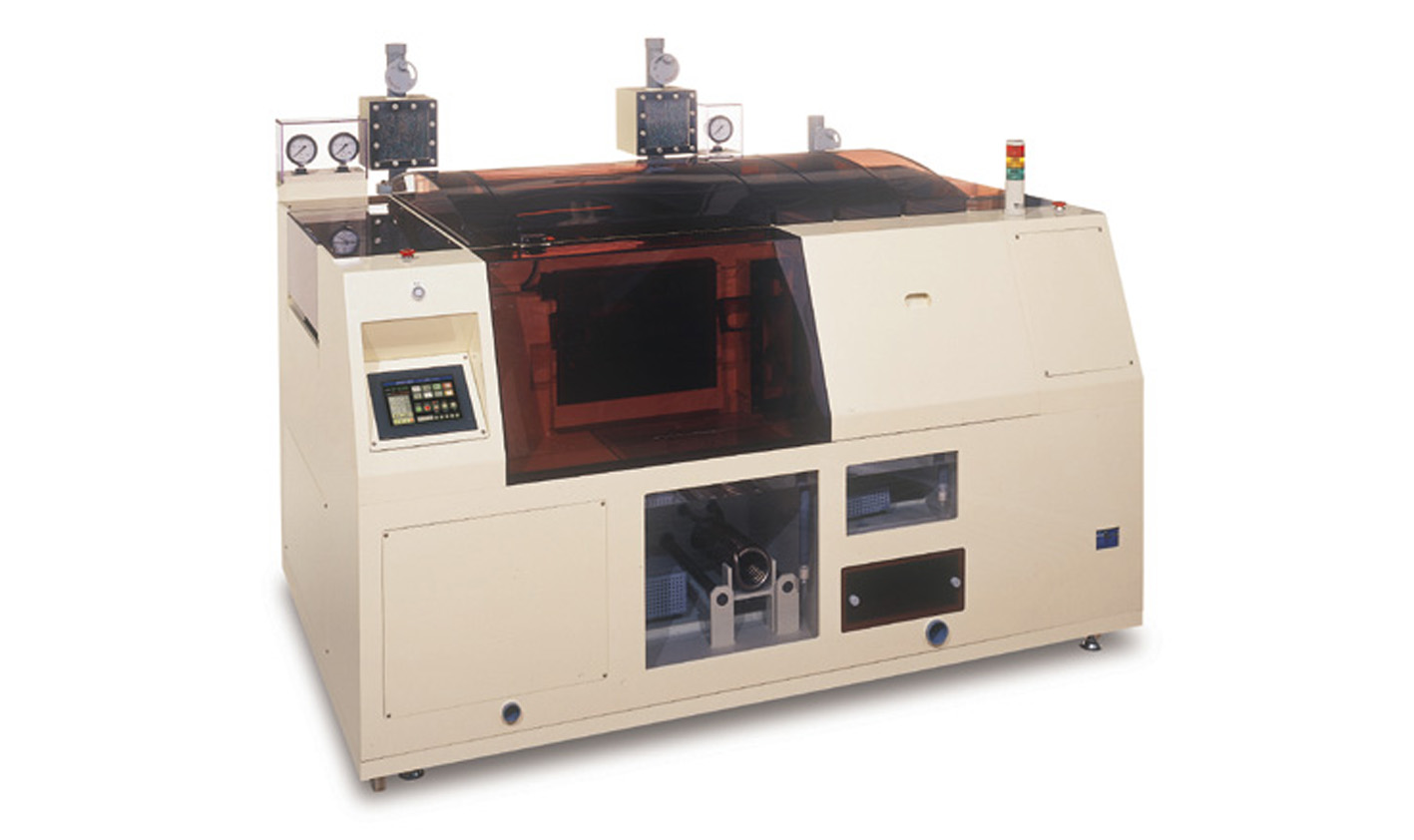

Equipment dimension (L×W×H) ： 2010 × 1450 × 1240 mm
Board size (effective width) ： 400mm
Process liquid ： -
Transportation rate ： -
Pass line ： 900mm
Operation system ： Touch panel type
*Equipment materials vary according to chemicals
*Please feel free to contact us for other special specifications
